Umshini wokuhlela

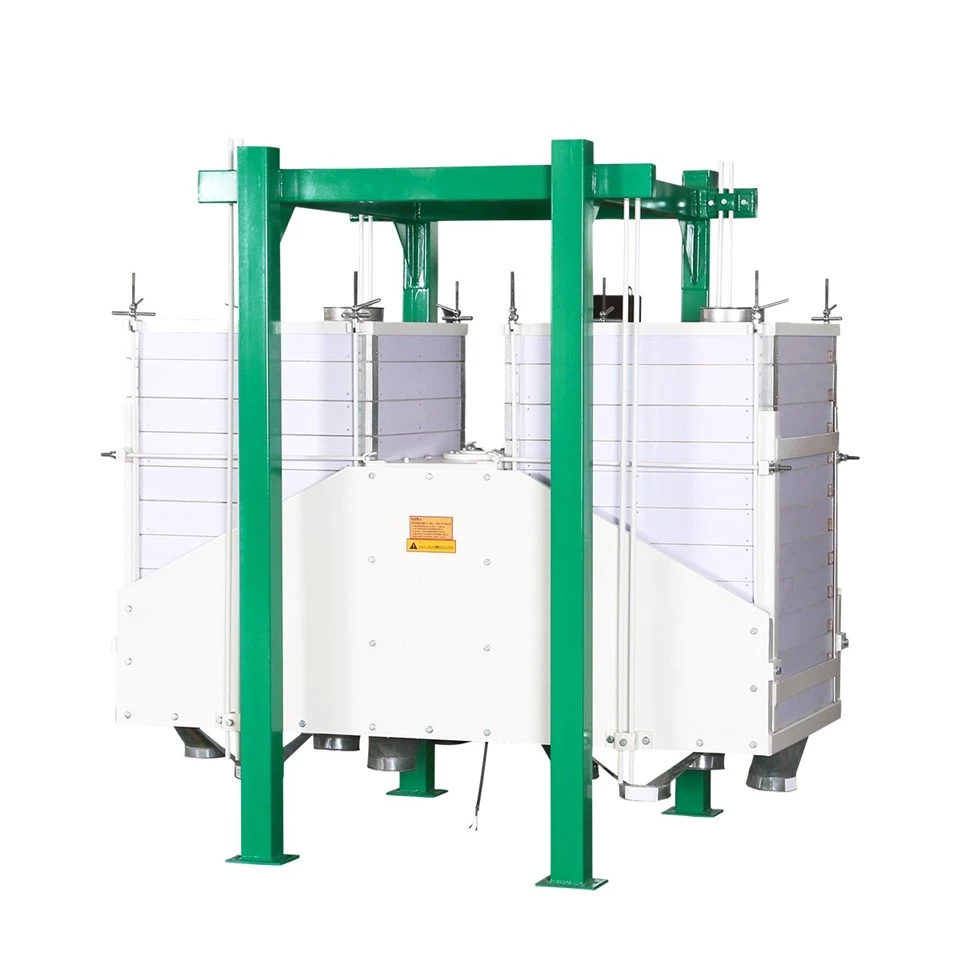

Umshini we-PLASPIFTER WOKUGCINA
I-Twin - Isigaba Pulazifter ngumshini wokuhlalisa osebenza kahle owenzelwe ukuhlukaniswa kwesiteji sefulawa kokugcina kwezitshalo zesimanje. Ibekwe phakathi kohlelo lokuqala lokuhlola kanye nendawo yokupakisha, iqinisekisa ukuhlukaniswa okuqondile kwezinto zokwakha ezingcolile, kufaka phakathi:
Izingxenyana ezinhle zefulawa (ukuze ziphele - Ukulawulwa kwekhwalithi yomkhiqizo)
Izinhlayiya ze-coarse sikakolweni (zokuphindiselwa kabusha)
Izinto eziphakathi nendawo eziphakathi nendawo (ngosayizi - ukuhlanganiswa okuthile)
Izinzuzo ezibalulekile:
- Dual - design comment for ephakeme
- Ukucushwa okwenziwe ngokwezifiso ngezinhlobo ezahlukahlukene zezinto ezibonakalayo
- Imboni - Ukwethembeka okufakazelwe kufulawa nokugaywa kwelayisi
Sinikeza ngezixazululo ezihlangene zokufihlakala zokufanisa izidingo ezithile zokusatshalaliswa kwezinhlayiyana.
Umgomo Wokusebenza
I-sifter iqhutshwa yimoto efakwe ngaphansi kohlaka olukhulu ukwenza ukunyakaza okujikeleza kwendiza nge-eccentric block. Okuqukethwe kukondlisiwe ku-inlet futhi kugeleza phansi ngesinyathelo ngesinyathelo ngokuya ngomklamo othize wezinto ezahlukahlukene, futhi ngasikhathi sinye kuhlukaniswe ukusakazwa okuningana ngosayizi wezinhlayiyana. Izinto ezibonakalayo zingahlukaniswa zibe nguMax. izinhlobo ezine ezibonakalayo. Ishidi lokugeleza lingaklanywa ngezidingo ezihlukile.
Ubuso
1. Ukucushwa kohlu lwezinhlaka
Kutholakala ngosayizi abaningi abamile:
I-630 × 630mm
700 × 700mm
I-830 × 830mm
I-1000 × 1000mm
2. Design modular & ngokwezifiso
Inani elifanelekileko le-SIES Frame Fruef for ukucaciswa okulihleliwe
Izikimu eziguquguqukayo zokuhlanza ukufeza izidingo zokuhlukaniswa kwezinto ezihlukile
3. I-Premium Bearing System
Ukunemba - Ukulinganisela okulinganiselwe okulinganiswe nge-SKF bearings (Sweden) ye-Smooth, vibrate -
4. Phezulu - ukwakhiwa kwekhwalithi yekhwalithi yekhwalithi yekhwalithi
Ama-Hardwood ozimele angenisiwe nge-Melamine Plastic Coating for Rediable
Amathileyi ensimbi engagqwali wokuhlanzeka kwezinto ezibonakalayo
- shintsha design:
Ozimele ezingenakuguquguquka neziguqukayo
Ivikelwe yi-top - i-mored metal clamping uhlaka ngezikulufo se-micrometer Prescients
5. Dual - ukusebenza kahle kwesigaba
Amandla aphindwe kabili vs. mono -} abahlengi
I-compact footprint: isikhala - ukonga ukwakheka ngesakhiwo esingasindi
Izinketho zokufaka eziguquguqukayo
Phansi - kufakwe kufreyimu ehlanganisiwe
Uphahla - imiswe ngesakhiwo sokusekelwa esihlukile
7. Ukuvuselelwa okukhethwa kukho
I-Sefar Precision Sieves ngokuthuthuka kwama-grading
Lesi sinhlelo esithuthukile siqinisekisa ubukhulu - umthamo, ukunemba okuvilaphayo ngokulungiswa okulula kanye nokwakhiwa okude - ukuthembeka kwesikhathi sefulawa yanamuhla kanye nemishini yokugaya irayisi.
Uhlu lwepharamitha lobuchwepheshe
|
Ukuthayipha |
Uhlaka lwe-sitter |
Indawo efinyelela |
Isivinini esikhulu shaft |
Okukhiqiza |
Endleleni |
Ubuqhwaga |
Isisindo |
Ubukhulu be-Shape |
|
(ucezu) |
(㎡) |
(r / min) |
(t/h) |
Ibanga elinquma phakathi ububanzi besingelezi |
(kw) |
(kg) |
Lxwxh (mm) |
|
|
I-FSFJ2X10X63 |
6-12 |
4.2 |
290 |
2-2.5 |
Ø45-55 |
1.1 |
550-580 |
1680x1270x1500 |
|
I-FSFJ2X10X70 |
8-12 |
6.2 |
265 |
3-3.5 |
Ø45-55 |
1.1 |
650-670 |
1840x1350x1760 |
|
I-FSFJ2X10X83 |
8-12 |
8.5 |
255 |
5-7 |
Ø45-55 |
1.5 |
730-815 |
2120x1440x2120 |
|
I-FSFJ2X10X100 |
10-12 |
13.5 |
255 |
8-10 |
Ø45-55 |
2.2 |
1200-1500 |
2530x1717x2270 |
Incazelo eningiliziwe
Imiklamo evulekile futhi evaliwe yamagumbi iyatholakala zombili. Indawo enesihlubu yohlobo oluvaliwe inkulu futhi ukubekwa uphawu kungcono.
Uhlaka lwesihluthuluka ngokhuni, luhlanganiswe ngopulasitiki ukugwema ukuguquguquka okumanzi, ilungiselelo le-6-12 ngesidingo esihlukile.
Ukucindezela okuhlanganisiwe okuqondile nokuvundlile ukuqinisekisa ukuthi uhlaka lodumo luqinile, akukho okuchithekayo, akukho phakathi - ukuvuza.
Ukumiswa kwe-Fiberglass Rood ukumiswa okusebenzayo okuqinile nokuqalisa okufushane - kuya phezulu futhi kufushane - phansi.
Umshini we-Plans Fifter: imishini ebalulekile yokunemba ufulawa we-grading
Q: Kungani izinhlelo zibaluleke kakhulu kumalambu wesimanje wefulawa?
A: I-Pulazifter yethu ihambisa ukusebenza okungenakuqhathaniswa:
• I-99% yokuhlola ukunemba kwe- - igxeka ufulawa we-premium
• Ukuhlukaniswa okuhlukahlukene okuhlukahlukene -}}
Q: Imininingwane ebalulekile
A: • Amandla: 5-30T / H ngeyunithi ngayinye
• Amandla: 2.2 - 11kW (amamodeli okusindisa amandla atholakalayo)
• Izinketho zesikrini: 10-400 Mesh
Q: Ucwaningo lwecala
A: I-Canadian Flour Mill yathola:
• Ukuncishiswa okungu-0.2% kokuqukethwe komlotha
• Ukwanda okungu-15% kokudlula
• Ukuphila okungu-30% isikhathi eside
Q: umngcele wokuncintisana
A: • Isikhala esiphansi se-30% ngaphansi kwamamodeli ajwayelekile
• iwaranti yeminyaka emi-2 kufreyimu enkulu
